argeting the compute and acceleration needs from the edge to the core to the cloud, Terasic’s DE10-Agilex accelerator is purpose-designed to meet the ever-increasing demands for acceleration, compute, and fast data movement.

The DE10-Agilex is based on the powerful Intel® Agilex™ FPGA to obtain speed and power breakthrough, with 40% higher performance, 40% lower power for equivalent performance. The accelerator includes PCI Express Gen 4.0 x16, two 200G QSFP-DD connectors and offers 32GB of DDR4 up to 680Gbps bandwidth to provide adaptable acceleration, maximum throughput and highly customizable processing of data for compute intensive applications.

The DE10-Agilex fully supports Intel® Open VINO™ toolkit, OpenCL™ BSP and Intel® oneAPI Toolkits to provide optimal Computer Vision and Deep Learning solutions. Our clients' systems can achieve highest computing performance and lowest cost for their Data Center and AI applications by leveraging the Agilex® FPGA on DE10-Agilex accelerator.

Target Markets:

High Frequency Trading		High Performance Computing		Instrumentation		Military & Defence		Broadcast & Video

FPGA

• Intel® Agilex™ FPGA AGFB014R24A2E2VR0

FPGA Configuration

• On-Board USB Blaster II or JTAG header for FPGA programming

• Avalon-ST (AVST x16) configuration via MAX 10 and CFI flash memory

Memory

• 128MB FLASH

• Total 32GB DDR4 SODIMM with ECC.

Communication and Expansion

• Two QSFPDD connectors for 200/100/40/25/10 GbE network interface

• PCI Express Gen4 x16 edge connector (includes PCIe drivers)

• 2x5 Timing expansion header

• UART

Others

• General user input / output:

• 8 LEDs

• 2 push-buttons

• 2 slide switches

• U.FL clock input / output

• On-Board Clock

• 50MHz Oscillator

• Programmable Clock Generator

• System Monitor and Control

• Temperature sensor

• Power Monitor

• Auto Fan control

• Auto Shutdown Control

• Power In

• PCI Express 2x4 power connector for 12V DC Input

• PCI Express edge connector power

• Mechanical Specification

• PCI Express standard height and 3/4-length

Supported Memory Modules for Sockets

• Single Rank SODIMM: Up to 2666/3200 MT/s for FPGA Core Speed 2/1

• Dual Rank SODIMM: Up to 2400/2666 MT/s for FPGA Core Speed 2/1

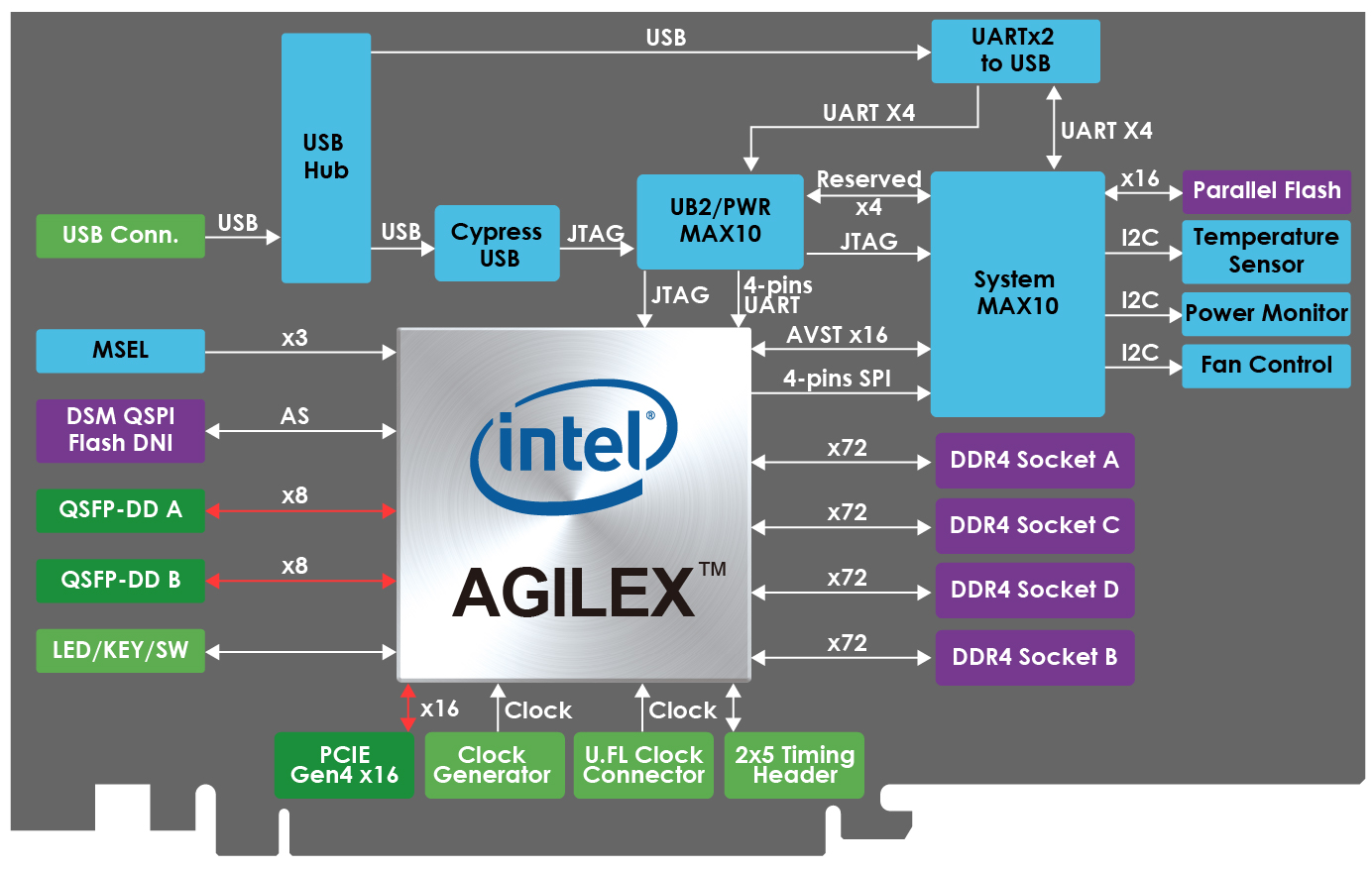

Block Diagram

Heatsink

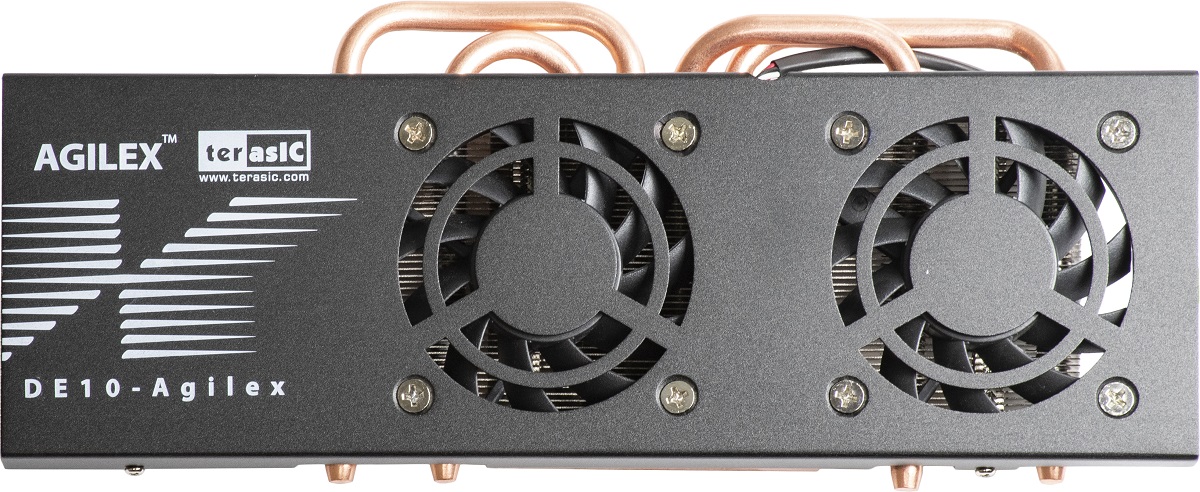

Active Heatsink

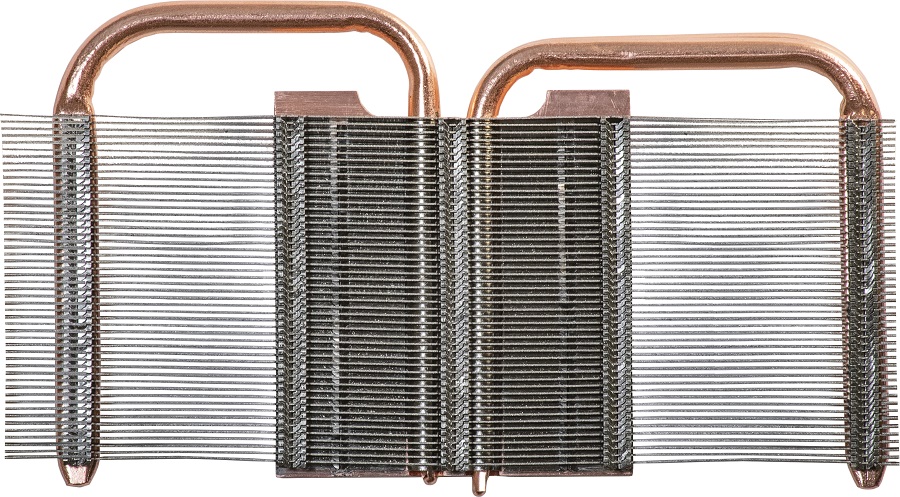

Passive Heatsink(Optional)
